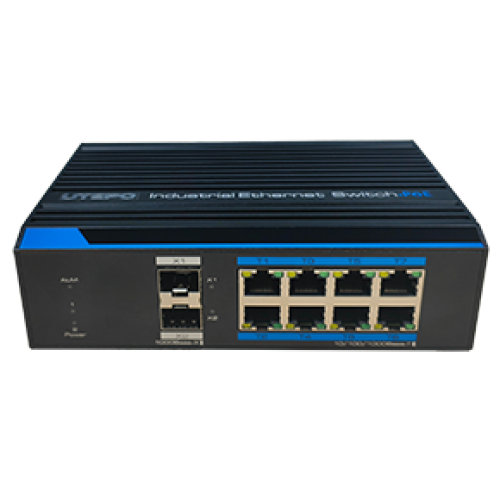

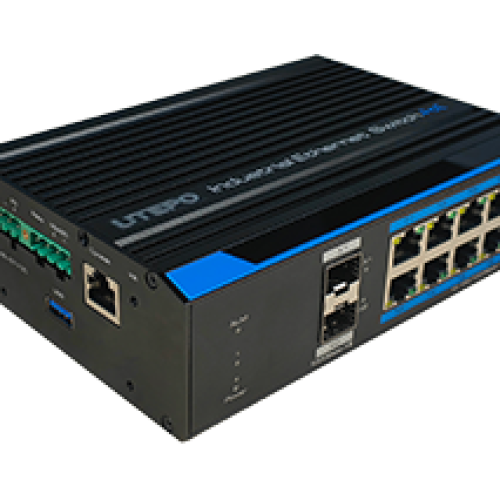

This series of products is an industrial grade 10 port full Gigabit PoE layer 2 management switch.

This series of switches can provide 8 Gigabit Ethernet RJ-45 ports and 2 1G/2.5G SFP ports.
All RJ-45 downstream ports of UTP7310S-PSB support Power over Ethernet (PoE+), and each port can provide up to 30W of power, complying with the IEEE802.3af/at standard.
All RJ-45 ports of UTP7310S-PSD support Power over Ethernet (PoE), with ports 1-4 providing up to 90W (PoE+) power and ports 5-8 providing 30W (PoE+) power, in compliance with the IEFE 802.3af/at/bt standard.

This series of switches supports PoE Watchdog, which automatically detects and restarts the camera when it drops. It supports Q-PoE (Ouick PoE) technology, which starts PoE power supply immediately when the switch is started without waiting for the switch system software to control it. It also supports P-PoE (Perpetual PoE) technology, which ensures uninterrupted PoE power supply when the switch is restarted and quickly restores the network.

This series of switches has rich L2 management functions, such as port management, 802.1Q VLAN, 802.1p QoS, SNMP and PoE control, etc.
Switches can be easily managed through web management systems (http/https), CLI (telnet/ssh/console), and SNMP.
It can be widely used in projects such as lighting, security monitoring, and enterprise parks.

Industrial grade design

● Wide temperature operation:-
40~75℃

● Redundant power supply design

Static protection: 6kV contact discharge, 8kV air discharge

Fanless, metal shell design

● Supports rail mounted, desktop mounted, and wall mounted installations
