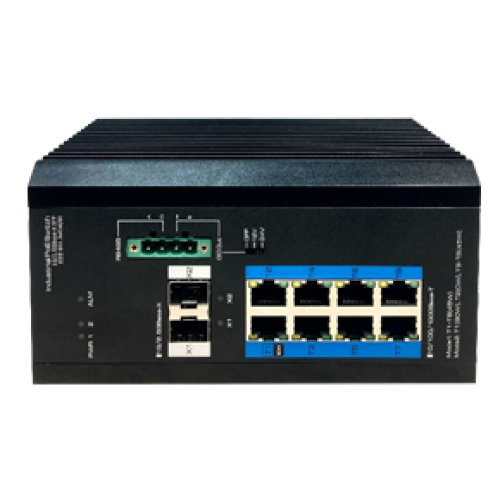

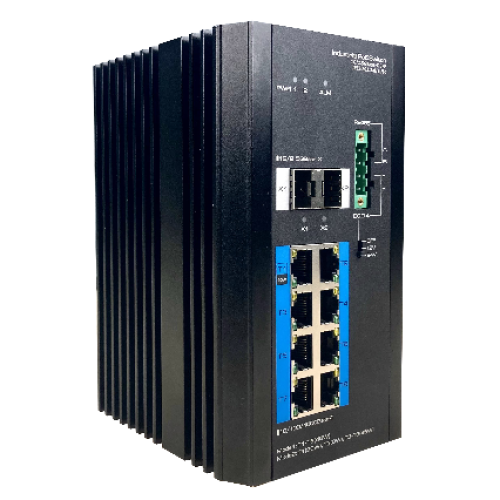

This switch provides 8 Gigabit Ethernet RJ-45 ports and 2 1G/2.5G SFP ports. All RJ-45 ports support Power over Ethernet (PoE) and can provide up to 45W of power. The software can be set to provide up to 90W of power for port 1, while port 2 has PoE disabled. Ports 3-8 provide 45W of power, complying with the IEEE 802.3af/at/bt standard.

This switch supports PoE Watchdog, which automatically detects and restarts the camera when it disconnects;
Support Q-PoE (Quick PoE) technology, immediately start PoE power supply when the switch is started, without waiting for switch system software control;
Supports P-PoE (Perpetual PoE) technology, ensuring uninterrupted PoE power supply during switch restart and rapid network recovery.

This switch has rich L2 management functions, such as port management, 802.1Q VLAN, 802.1p QoS, SNMP and PoE control, etc.
Switches can be easily managed through web management systems (http/https), CLI (telnet/ssh/console), and SNMP.
The switch supports 12~57V DC wide voltage input and can be widely used in projects such as lighting, security monitoring, and enterprise parks.

Rich interfaces

8 10/100/1000BASE-T PoE RJ-45 ports

● 2 1G/2.5GBASE-XSFP ports

● 1 RJ-45 Console port

● 1 RS485 port

● 1 relay alarm port

● 1 USB 3.0 port

● 1 DC output port

Industrial grade design

● Wide temperature operation:-
40~75℃

● Redundant power supply design, 12~57V wide voltage input

Static protection: 6kV contact discharge, 8kV air discharge

● Metal shell design

● Supports rail mounted, desktop mounted, and wall mounted installations

Second level management function

● 802.1Q VLAN

● 802.1p QoS

● SNMP

● STP/RSTP/MSTP

● Fast-Ring

● IGMP snooping

● DMS (Dashboard management system)
