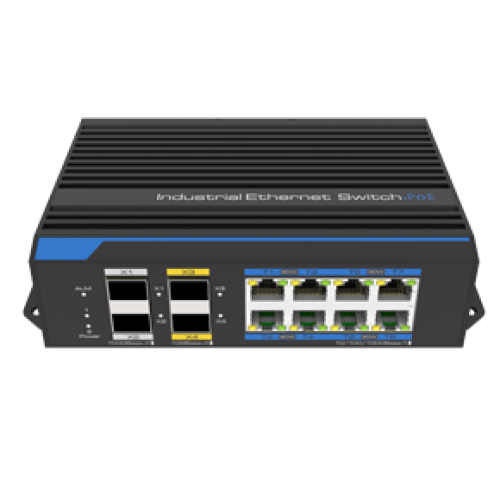

UTP7612S-PSD360 is an industrial grade 12 port 10 million hybrid PoE layer 2 management switch.

This switch can provide 8 Gigabit Ethernet RJ-45 ports, 2 10G SFP+ports, and 2 1G/2.5G SFP ports.
The switch supports the IEEE 802.3af/at/bt standard, and all RJ-45 ports support Power over Ethernet (PoE). Ports 1-4 can provide up to 90W (PoE+) power, while ports 5-8 can provide 30W (PoE+) power;
The switch supports PoE Watchdog, which automatically detects and restarts the camera when it drops. It also supports Q-PoE (Quick PoE) technology, which immediately starts PoE power supply when the switch is started, without waiting for the switch system software to control it. It supports P-PoE (Perpetual PoE) technology, which ensures uninterrupted PoE power supply when the switch is restarted and quickly restores the network.

This switch has rich L2 management functions, such as 802.1Q VLAN, 802.1p QoS
SNMP、
Fast ring network, ERPS, and PoE control, etc.
Switches can be easily managed through web management systems (http/https), CLI (telnet/ssh/console), and SNMP.
It can be widely used in projects such as lighting, security monitoring, and enterprise parks.

Rich interfaces

Four 10/100/1000Base-T PoE++RJ-45 ports

Four 10/100/1000Base-T PoE+RJ-45 ports

● 2 1G/2.5G or 10GBase-X SFP+ports

● 2 1G/2.5GBase-X SFP ports

● 1 RJ-45 Console port·

● 1 USB 3.0 port

● 1 RS485 port

Industrial grade design

● Wide temperature operation:-
40~75℃

● Redundant power supply design

Static protection: 6kV contact discharge, 8kV air discharge

Fanless, metal shell design

● Supports rail/wall/desktop installation

Second level management function

● 802.1QVLAN

● 802.1p QoS

● SNMP

● STP/RSTP/MSTP

● Fast-Ring

● ERPS

● IGMP snooping

● DMS (Dashboard management system)
